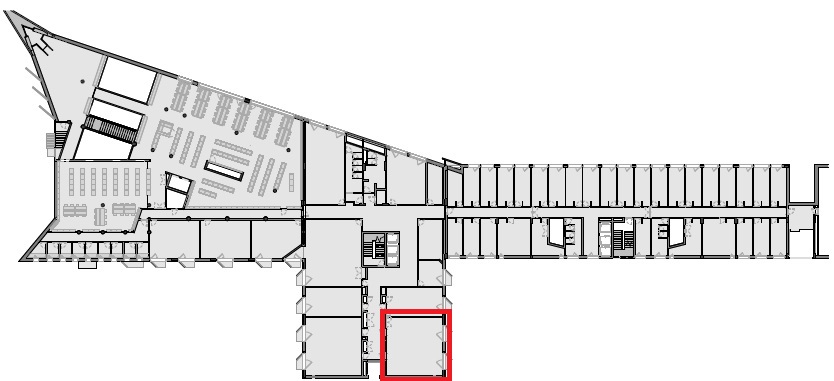

C6.07

Atualizado/Updated: 2025-04-21

PT

C6.07

WARNING

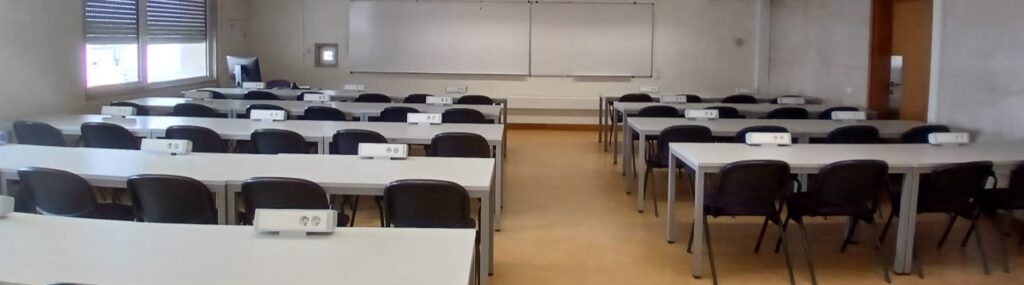

This room has the following equipment:

    • 1 Video camera placed on the ceiling.
      • The video camera allows you to define scenarios (presets).
    • 1 360º microphone on the ceiling.
    • 2 Active wall-mounted speakers.
    • 1 Control system that allows you to:
      • Turn the video projector on/off;
      • Turn the video camera on/off;
      • Choose the predefined shooting scenarios.


Tip: The computer’s connection to the video projection and videoconferencing systems is ensured by a single USB 3.0 cable, which must be connected to the equipment to be used (room desktop or laptop).

INSTRUCTIONS

  1. If necessary, turn on the teacher’s desktop.
  2. Open the support materials (audio, video, presentations).
  3. If necessary, turn on the videoprojector using the button on the control box.
  4. If necessary, turn on the PTZ camera using the button on the control box.
  5. If necessary, open the Zoom client or access the platform via https://videoconf-colibri.zoom.us/, performing federated authentication (SSO) with the Iscte account credentials (e.g. xxnes and password).
  6. Check the microphone (Solvo).
  7. Check the speaker (Solvo).
  8. Check the video camera (Laia Cute).
  9. Choose the preset using the buttons on the control system.
  10. If necessary, start a previously scheduled lesson, the link to which has been sent to the students.
  11. At the end of the lesson or meeting, close the zoom session, close all applications (e.g. powerpoint) or open sessions on platforms (e.g. mail, onedrive, phoenix, e-learning).
  12. Turn off the PTZ camera using the control system.
  13. Turn off the video projector using the control system.



The control system that allows:



        • Turn ON | Turn OFF the Videoprojector
      • Turn ON | Turn OFF the PTZ Camera
    • Control the volume of the audio
    • Choose one of the four presets (P1 a P4)



    • Intel Core I3-7100, 3900 MHz, 8G RAM, SSD 250 G disc, 80 Plus Platinum power supply
    • Monitor
    • USB keyboard and mouse
    • Windows 11
    • List of Software



Camera

    • Optical zoom: 30X
    • Image sensor: 1/2.8 inch High Quality HD CMOS sensor
    • Effective pixels: 2.07MP, 16:9
    • Video Format: HDMI
    • Vision Angle: 6.3°(tele) 72.5°(wide)

Microphone

    • Capture: 360º
    • Capture distance ≥ 6 m



Technical

    • Projection system: 3LCD technology, RGB liquid crystal shutter
    • LCD panel: 0.62 inch with C2 Fine


    • Color Light Output: 4,500 lumen – 3,150 lumen (economy) in compliance with IDMS15.4 standard
    • White Light Output: 4,100 lumen – 2,800 lumen (economy) In accordance with ISO 21118:2020
    • Aspect ratio: 16:9
    • Contrast ratio: Over 2,500,000 : 1
    • Light source: Laser
      • 20,000 Hours (Durability High)
      • 30,000 Hours (Durability Eco)
    • Trapezoidal correction:
      • Manual vertical ± 30 °
      • Manual horizontal ± 30°
    • Video editing: 10 Bits
    • 2D vertical refresh rate: 192 Hz – 240 Hz
    • Color reproduction: up to 1.07 billion colors

Optical

    • Projection ratio: 1,30 – 2,10:1
    • Zoom: Manual, Factor: 1 – 1,62
    • Lens: Optical
    • Image size: 40 inches – 500 inches
    • Projection lens F-number: 1,49 – 1,77
    • Focal length: 18,2 mm 29,2 mm
    • Focus: Manual
    • Offset: 10 : 1

Connectivity

    • USB Display Function: 2 in 1 (Image/Sound)
    • Connections: USB 2.0-A, USB 2.o, RS-232C, Ethernet interface (100 Base-TX/10 Base-T), IEEE 802.11a/b/g/n/ac wireless LAN, VGA input (2x), VGA output, HDMI input (3x), composite input, Miracast, jack output, jack input (3x), USB 2.0 Type B (Service Only), Wi-Fi Direct, microphone input
    • Epson iProjection App: Ad-hoc/Infrastructure
    • Network protocol: PJLink



    • Compatible with HDMI2.0, HDCP2.2
    • Automatic on/off
    • Automatic source detection
      • 1 HDMI cable connected to the auditorium desktop
      • 1 HDMI cable available for connection to a laptop



    • 2 x 5.25″ Active Wall Speakers
    • 2 x 30W integrated



Door opening reader

    • If the RFID reader LED turns green or yellow, the card holder is allowed to enter the room and the door opens.
    • If it goes red, the cardholder is not allowed into the room and the door does not open.

Student attendance reader

    • If the RFID reader LED turns green or yellow, the presence is recorded.
    • If the LED turns red, the presence is not recorded.
